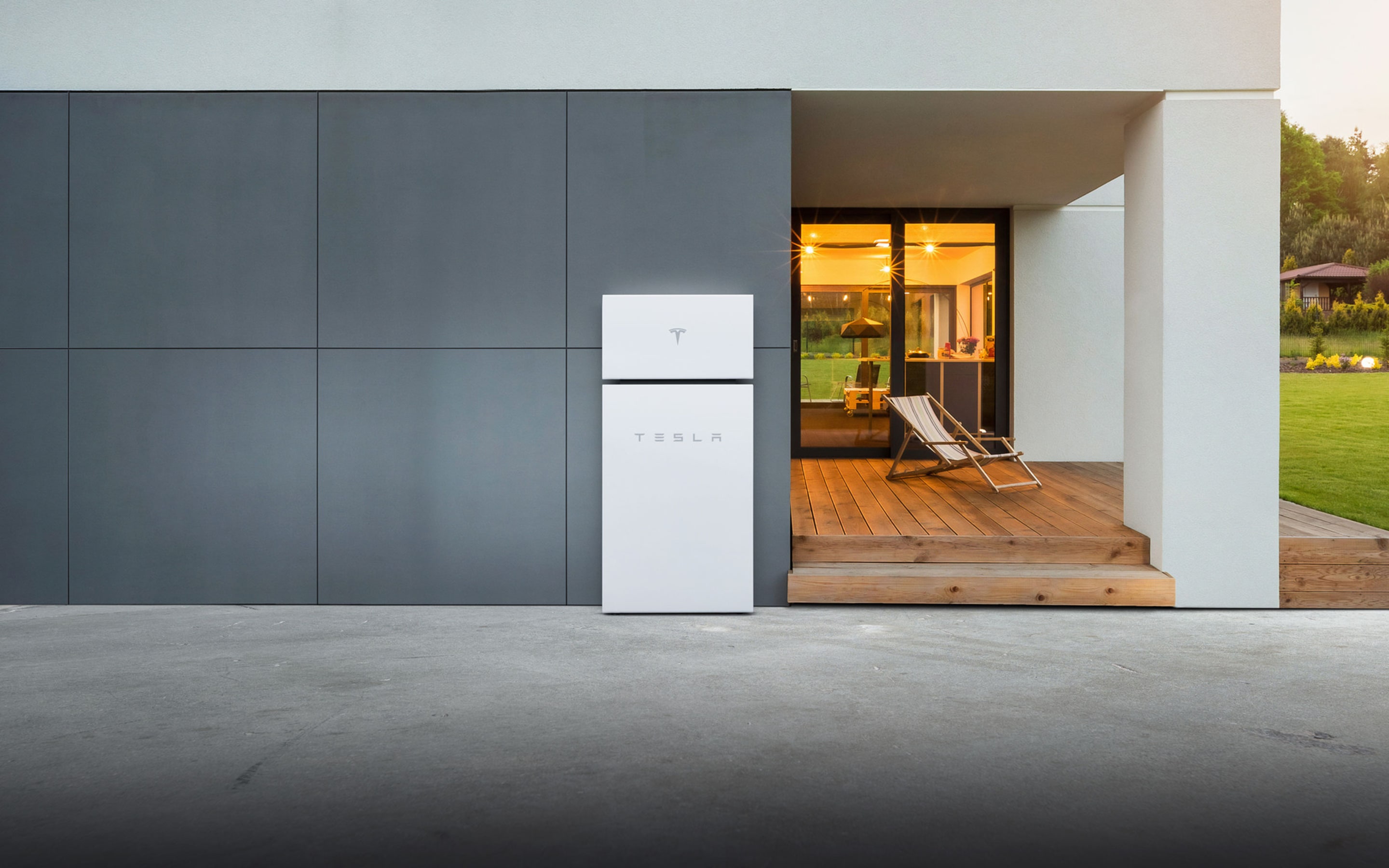

Tesla Home Battery
Powerwall is a home battery that charges using electricity generated from solar panels, or when utility rates are low, and powers your home in the evening. It also fortifies your home against power outages by providing a backup electricity supply. Automated, compact and simple to install, Powerwall offers independence from the utility grid and the security of an emergency backup.
Tesla home batteries maximize the usefulness of your solar panels and offer a variety of backup electricity supply solutions. You can even go off the grid.
Solar electricity at night
Powerwall stores electricity generated by solar panels during the day and makes it available to your home in the evening.
This bridges the gap between peak solar and peak demand, allowing you to use your photons when you need them.
Go net zero
Combine solar panels and one or more Powerwall home batteries to power your home independently from the utility grid.
A net zero energy rating means that your home produces as much energy as it consumes, but is still connected to the utility grid for periods of high demand.
In the event of a utility outage, Powerwall can power your entire home or select appliances with an uninterrupted supply of electricity.
When installed along with solar panels, Powerwall will allow your home to use solar generated electricity during a utility outage.
Current generation home batteries are bulky, expensive to install and expensive to maintain. In contrast, Powerwall's lithium ion battery inherits Tesla's proven automotive battery technology to power your home safely and economically. Completely automated, it installs easily and requires no maintenance.
How it Works
A typical Powerwall system includes solar panels, an inverter for converting electricity between direct current and alternating current, a meter for measuring battery charge, and in backup applications, a secondary circuit that powers key appliances. Which components are required depends on how you use your home battery.
Each Powerwall has a 6.4 kWh energy storage capacity, sufficient to power most homes during the evening using electricity generated by solar panels during the day. Multiple batteries may be installed together for homes with greater energy needs.
How much electricity does my home use?
Common household electricity consumption.
Flat Screen TV 0.1 kWh /hr
Lights Per Room 0.1 kWh /hr
Laptop 0.05 kWh /hr
Refrigerator 1.6 kWh /day
Clothes Washer 2.3 kWh each use
Clothes Dryer 3.3 kWh each use
- Technology Wall mounted, rechargeable lithium ion battery with liquid thermal control.
- Model 6.4 kWh For daily cycle applications
- Warranty Ten years
- Efficiency 92.5% round-trip DC efficiency
- Power 3.3 kW
- Depth of Discharge 100%
- Voltage 350 – 450 volts
- Current 9.5 amperes
- Compatibility Single phase and three phase utility grid compatible.
- Operating Temperature -4°F to 122°F / -20°C to 50°C
- Enclosure Rated for indoor and outdoor installation.
- Installation Requires installation by a trained electrician. DC-AC inverter not included.
- Weight 214 lbs / 97 kg
51.3” x 34” x 7.2”
1302 mm x 862 mm x 183 mm
UL 9540, UL 1642, UL 1973
AC156 seismic certification
IEEE 693- 2005 seismic certification
FCC Part 15 Class B
