Dimensions and Weights

Exterior Dimensions

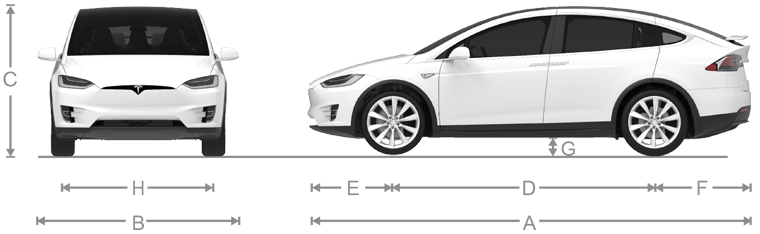

Front and side vehicle views with lines depicting measurements
A Overall Length 198.9 in 5,052 mm
B

Overall Width (including mirrors)
Overall Width (including folded mirrors)
Overall Width (excluding mirrors)

89.4 in
81.6 in
78.7 in

2,271 mm
2,072 mm
1,999 mm

C Overall Height 66 in* 1,684 mm*
D Wheel Base 116.7 in 2,965 mm
E Overhang - Front 38.9 in 989 mm
F Overhang - Rear 43.2 in 1,098 mm
G

Ground Clearance:
Standard, with skis
Standard, without skis
Very high, with skis
Very high, without skis


7 in
7 in
8 in
9 in

171 mm
183 mm
211 mm
223 mm

H

Track - Front
Track - Rear

67.1 in
67.3 in

1,705 mm
1,710 mm

*Values are approximate. Dimensions can vary depending on a vehicle's options and various other factors.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Depending on configuration (such as suspension height or wheel selection), your vehicle's liftgate can open up to approximately 2.5 meters high. See Adjusting Liftgate Opening Height to adjust the liftgate height and prevent it from coming into contact with low ceilings or other objects.

Interior Dimensions

Head Room

Front
Rear
Third

41.7 in
40.9 in
37.1 in

1059 mm
1039 mm
942 mm

Leg Room

Front
Rear
Third


                  41.2 in

38.4 in
32.7 in


                  1046 mm

975 mm
831 mm

Shoulder Room

Front
Rear
Third

60.7 in
56.8 in
40 in

1542 mm
1442 mm
1016 mm

Hip Room

Front
Rear
Third

55.6 in
59 in
38.5 in

1412 mm
1498 mm
978 mm

Cargo Volume

Front Trunk Rear* Total
Seven Seat Vehicles 6.6 cu ft (187 L) 76.5 cu ft (2166 L)** 83.1 cu ft (2353 L)
Six Seat Vehicles 6.6 cu ft (187 L) 70.7 cu ft (2002 L)** 77.3 cu ft (2189 L)
Five Seat Vehicles 6.6 cu ft (187 L) 81.2 cu ft (2299.5 L)** 87.8 cu ft (2486.5 L)

* Maximum cargo volume behind the front row seats. Includes the 12.6 cu ft (357 L) cargo area in the rear trunk (area behind the third row seats, if equipped).
** Second row seats fully forward and/or folded.

Weights

75D

100D

100D
J cell

P100D

P100D
J cell

Curb Mass* (kg)

Total: 2387
Front: 1143
Rear: 1244

Total: 2491
Front: 1222
Rear: 1269

Total: 2473
Front: 1247
Rear: 1226

Total: 2530
Front: 1213
Rear: 1317

Total: 2508
Front: 1234
Rear: 1274

TPMLM** (kg)

Total: 2985
Front: 1266
Rear: 1719

Total: 3079
Front: 1341
Rear: 1738

Total: 3070
Front: 1412
Rear: 1658

Total: 3120
Front: 1334
Rear: 1786

Total: 3100
Front: 1395
Rear: 1705

Towing Capacity (if equipped) See Towing and Accessories.

*Curb Weight = weight of the vehicle with correct fluid levels, no occupants and no cargo
**TPMLM = Technically permissable maximum laden mass

Informational PurposesAn informational icon, calling your attention
Note
Values are approximate. Weights can vary depending on a vehicle's options.
