Interior Storage and Electronics

Center Console

In addition to housing an RFID transmitter that reads key fobs and key cards (see Keys), the center console includes cup holders, two storage compartments, wireless phone chargers, and a rear touchscreen.

To open the main storage compartment, pull its cover upward. Open the front storage compartment by sliding its cover forward.

Center console with one arrow showing how to slide compartment door and another arrow showing how to lift arm rest to reveal compartments

Second Row Console

Your Model S has a rear console integrated in the center of the second row. This console can serve as an arm rest for rear passengers.

To lower the console, press the button on the back of the center seat's headrest. To raise the console, push it all the way upwards.

Button on back of rear center seat

To access the storage tray and wireless phone charger (see Wireless Phone Chargers), raise the cover by pressing the latch on the underside of it and pulling it up.

Rear cup holder in open position

Glovebox

To open the glovebox, touch Controls > Glovebox. The glovebox automatically opens and the light turns on.

Glovebox open

To close the glovebox, push it upward until it latches into the closed position.

For additional glovebox security, touch Controls > Safety > Glovebox PIN to set a 4-digit PIN (see Glovebox PIN).

Informational PurposesAn informational icon, calling your attention
Note
If you leave the glovebox open, its light eventually turns off.
Informational PurposesAn informational icon, calling your attention
Note
The glovebox locks whenever closed and you lock Model S using the mobile app, key card, you leave Model S carrying your phone key (if Walk-Away Door Lock is turned on), or if Valet mode is active (see Valet Mode). It does not lock when Model S is locked by touching the lock icon on the touchscreen.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
When driving, keep the glovebox closed to prevent injury to a passenger if a collision or sudden stop occurs.

USB Ports

Model S has five USB ports:

  • Two USB ports are located in the front compartment of the center console. These can be used to charge USB devices and to play audio files from a phone or USB device (see Playing Media from Devices).
  • Two USB ports are located below the rear touchscreen that can be used to charge USB devices.
  • One USB port is located inside the glovebox. This port is equipped with a USB flash drive. The secure location of this USB port makes it ideal for saving Sentry Mode and Dashcam video footage.

To access the front USB ports, open the front compartment of the center console. The front USB ports are located on the rear wall of the compartment:

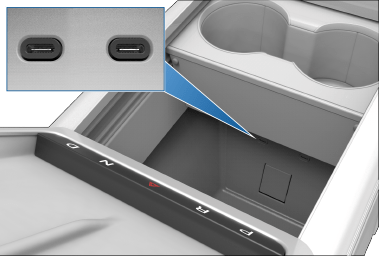

Front console with front compartment open, revealing two USB ports on rear wall of compartment

Rear USB ports are located below the rear touchscreen:

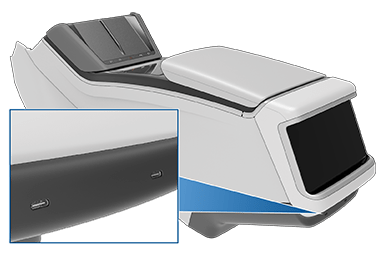

Two USB ports below the rear touchscreen

Glovebox USB port:

Glovebox open, revealing a USB drive in the USB port
Informational PurposesAn informational icon, calling your attention
Note
Power is available whenever the vehicle is considered "awake". The vehicle may be awake for many reasons. For example, when using features such as Summon, or when features such as Preconditioning, Keep Climate On, Dog Mode, Camp Mode, or Sentry Mode are enabled. The vehicle is also awake whenever the low voltage battery is being charged or is in use, during high voltage charging, when the vehicle is communicating with the mobile app, etc. Leaving an accessory plugged in does not deplete the low voltage battery.
Informational PurposesAn informational icon, calling your attention
Note
Use USB 3.0 compliant cables to connect a device to a USB port. Using non-compliant cables can result in slower charging, potential connection problems or degraded performance.
Informational PurposesAn informational icon, calling your attention
Note
Do not connect multiple devices using a USB hub. This can prevent connected devices from charging or from being recognized by Media Player, Sentry Mode, Dashcam, etc.

USB Drive Requirements for Recording Videos

Informational PurposesAn informational icon, calling your attention
Note
For saving Sentry Mode and Dashcam footage, Tesla recommends using the USB port located in the glovebox. Doing so increases security and minimizes power consumption.

One or more features on your Model S requires the use of a flash drive (for example, Dashcam, Sentry Mode and Track Mode (if equipped) that meets these requirements:

  • Minimum storage capacity of 64 GB. Use a flash drive with as much available storage as possible. Video footage can occupy a large amount of space.
  • A sustained write speed of at least 4 MB/s. Note that sustained write speed differs from peak write speed.
  • USB 2.0 compatible. If using a USB 3.0 flash drive, it must support USB 2.0.
  • Properly formatted (described below).
Informational PurposesAn informational icon, calling your attention
Note
In some market regions you can purchase recommended USB drives on http://www.tesla.com.

Formatting a USB Flash Drive

To save and retrieve video footage, Model S requires a USB flash drive formatted as exFAT, MS-DOS FAT (for Mac), ext3, or ext4 (NTFS is currently not supported). For use with Dashcam and Sentry Mode, the flash drive must contain a base-level folder called TeslaCam and for use with Track Mode (if equipped), the flash drive must contain a base-level folder called TeslaTrackMode.

Model S can format a USB flash drive for you. Insert the flash drive into a front USB port, and touch Controls > Safety > Format USB Drive. Doing so automatically formats the drive as exFAT and creates a folder for TeslaCam and TeslaTrackMode (if equipped). The USB flash drive is now ready to record and save video footage. Format USB Drive is available only when a USB flash drive (with one or fewer partitions) is inserted into a front USB port. Choosing Format USB Drive erases any existing content on the flash drive—before using this feature, you must move any content you want to keep to a different device.

If Model S is unable to format the flash drive, you must format it using a computer. Remember to manually create the TeslaCam folder, and the TeslaTrackMode folder (if equipped).

You can also format the USB flash drive with a computer to use a single flash drive for Dashcam, Sentry Mode, Track Mode (if equipped), and audio files. Create separate partitions on the drive formatted as exFAT; for example, one for Dashcam and Sentry Mode (you must create the TeslaCam folder), one for Track Mode (create the TeslaTrackMode folder), and an audio partition.

Once the USB flash drive is formatted and contains the necessary folder(s), insert it into a front (or glovebox, if equipped) USB port. Do not use a rear USB port— these are used only to charge USB devices. Once inserted, it can take up to 15 seconds for Model S to recognize the flash drive. When recognized, icons for Dashcam and Sentry Mode are available when you touch Controls and your vehicle is ready to record videos. You may need to first enable Sentry Mode (if equipped) by touching Controls > Sentry.

Viewing Video Recordings

You can view recorded footage on the touchscreen when Model S is in Park. Touch the Dashcam icon located in the app launcher or the Dashcam icon on the Controls screen. Touch the menu icon in the top corner of the screen. The tabs display a list of all video clips, organized by location and timestamp. Pause, rewind, fast forward, and delete video recordings as needed. You can also navigate to Controls > Safety > Delete Dashcam Clips to delete all dashcam and Sentry Mode footage, including recent and saved clips.

Informational PurposesAn informational icon, calling your attention
Note
Dashcam recording pauses when you launch the Viewer.

You can also view video footage by removing and inserting the USB flash drive into a computer and navigating to the TeslaCam or TeslaTrackMode (if equipped) folder.

The TeslaCam folder contains three sub-folders:

  • Recent Clips: When recording, Dashcam continuously saves footage to Recent Clips in 60-minute cycles. Footage is overwritten every hour unless you manually save it. Four videos are recorded for each clip, one from each camera (front, rear, left, and right).
  • Saved Clips: Contains all recordings that are saved using Dashcam.
  • Sentry Clips: Contains the last 10 minutes of footage from all Sentry Mode events that triggered an Alert or Alarm state. If storage space on the USB flash drive becomes limited, the oldest Sentry Clips are deleted to provide space for new ones. Once deleted, you cannot retrieve them.

When the USB flash drive runs out of storage space, video footage can no longer be saved. To prevent the flash drive from getting full, regularly move saved videos to another device and delete them from the flash drive.

Wireless Phone Chargers

Wireless phone chargers are integrated into both the front and rear consoles, each providing up to 15W of power to charge Qi-enabled phones. Simply place your phone on the charger. Your device may feel warm while charging, but this is a normal effect of inductive charging.

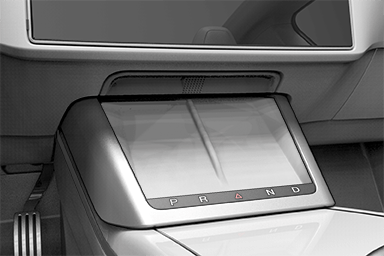

Wireless phone charger

When placed on the wireless charger, your phone charges whenever the vehicle is powered on (the touchscreen is on and you are in the vehicle). Your phone does not charge when you leave the vehicle unless a feature, such as Sentry mode is enabled.

Informational PurposesAn informational icon, calling your attention
Note
The phone must be in direct contact with the wireless charger. Do not place objects between the phone and the charger (for example, credit cards, key cards, coins, keys, metal objects, etc.).
Informational PurposesAn informational icon, calling your attention
Note
The wireless phone charger may not work if your phone case is too large or is made of metal. Try removing the phone from its case before placing it on the charger.
Informational PurposesAn informational icon, calling your attention
Note
The wireless phone charger does not charge if the vehicle's high voltage Battery is discharged.

Low Voltage Power Socket

Your Model S has a power socket located in the center console's rear compartment. To access the low voltage socket, open the front compartment of the center console.

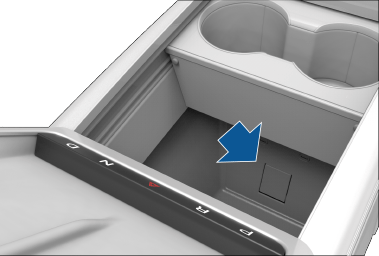

Center console with arm rest lifted, revealing power socket in the compartment

The power socket is suitable for accessories requiring up to 12A continuous draw (16A peak).

Informational PurposesAn informational icon, calling your attention
Note
Power is available whenever the vehicle is considered "awake". The vehicle may be awake for many reasons. For example, when using features such as Summon, or when features such as Preconditioning, Cabin Overheat Protection, Keep Climate On, Dog Mode, Camp Mode, Sentry Mode, etc. are enabled. The vehicle is also awake whenever the low voltage battery is being charged or is in use, during high voltage charging, when the vehicle is communicating with the mobile app, etc. Leaving an accessory plugged in does not deplete the low voltage battery.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The power socket and an accessory’s connector can become hot.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
To prevent excessive interference with the vehicle’s electronics, Tesla recommends that you do not plug any non-Tesla accessories, including power inverters, into the low voltage power socket. However, if you do use a non-Tesla accessory and notice any malfunctions or unexpected behavior, such as indicator lights, alert messages, or excessive heat from the accessory, unplug the accessory from the low voltage power socket immediately.
Informational PurposesAn informational icon, calling your attention
Note
A power inverter plugged into the low voltage power socket must support 16V DC input to function.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Do not attempt to jump start Model S using the low voltage power socket. Doing so can result in damage.

Coat Hangers

Your Model S has a coat hanger on each side of the vehicle above the rear window in the second row, next to the reading light. Push the coat hanger to release it. Push it again to retract it.

Coat hanger above rear window with arrow pointing outwards

Active Road Noise Reduction

Model S is equipped with Active Road Noise Reduction which reduces low-frequency road noise while driving on rough surfaces. To accomplish this, the vehicle uses the seat microphones to measure noise in the cabin, then generates anti-noise through the speakers to intelligently create quiet zones around each occupant depending on vehicle and environmental factors.

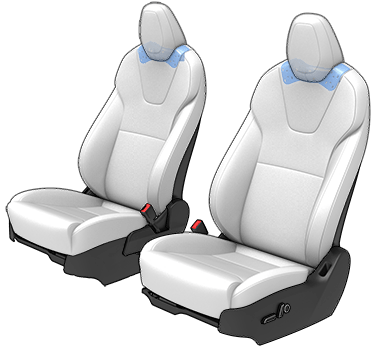

Front row seats with areas in either side of the head supported shaded blue

To turn Active Road Noise Reduction on or off, open the Media Player and touch Audio Settings icon > Options > Active Road Noise Reduction (the audio settings icon shows an equalizer with three vertical lines). This may require several minutes of driving time to calibrate before enabling.

Informational PurposesAn informational icon, calling your attention
Note
To ensure active noise reduction operates effectively, avoid covering the microphones (with seat covers, etc.). Active Road Noise Reduction may disable if a window is rolled down, door is open, or the fan is turned up.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
To prevent damage to these microphones when cleaning, do not over-saturate the area of the seats where the microphones are located.
