Interior Overview

Informational PurposesAn informational icon, calling your attention
Note
Illustrations are provided to improve conceptual understanding only. Depending on vehicle options purchased and market region, the design may differ but the function is the same.

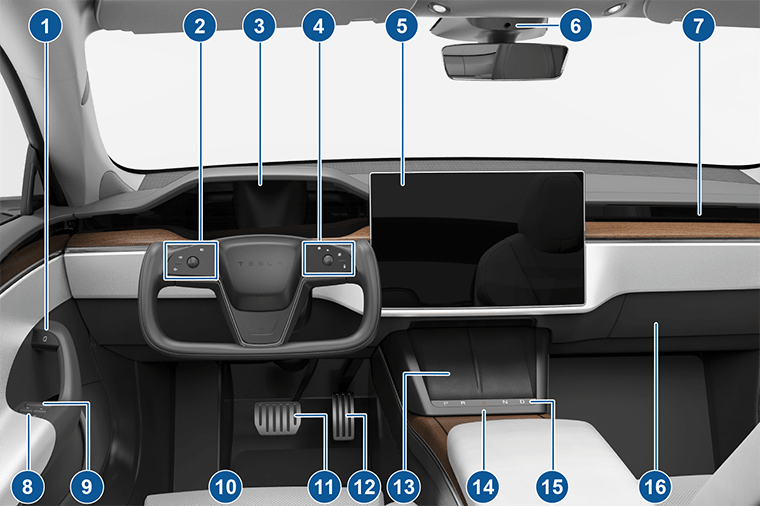

Interior view of front cabin with callouts
  1. Interior door handles (Doors)
  2. Left steering yoke (or steering wheel) buttons
  3. Instrument panel (Instrument Panel)
  4. Right steering yoke (or steering wheel) buttons
  5. Touchscreen (Touchscreen)
  6. Camera (Cabin Camera)
  7. Cabin climate control (Operating Climate Controls)
  8. Power window switches (Opening and Closing)
  9. Manual door release (Doors)
  10. Seats (Front and Rear Seats)
  11. Brake pedal (Braking and Stopping)
  12. Accelerator pedal (Acceleration Modes)
  13. Wireless phone chargers (Wireless Phone Chargers)
  14. Hazard warning lights (Hazard Warning Flashers)
  15. Secondary drive mode selector (Shifting)
  16. Glovebox (Glovebox)

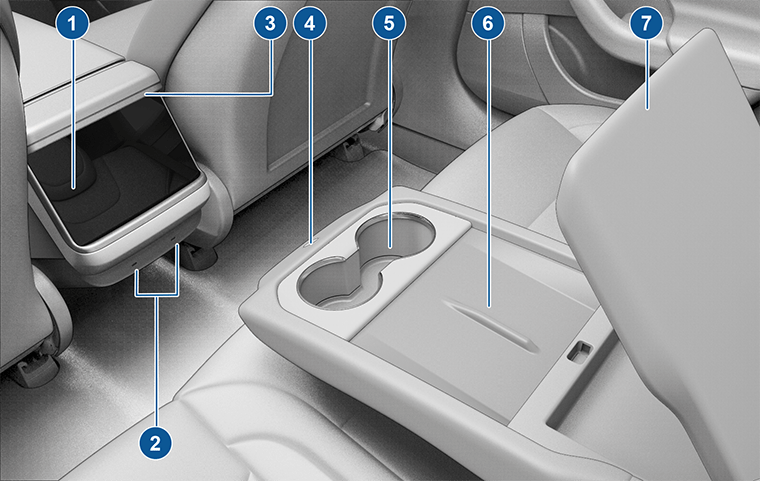

Interior view of rear cabin with callouts
  1. Rear touchscreen (Rear Touchscreen)
  2. USB ports (USB Ports)
  3. Adjustable climate control vents (Operating Climate Controls)
  4. Console release button (Rear Console)
  5. Cup holders (Rear Console)
  6. Wireless phone chargers (Wireless Phone Chargers)
  7. Rear armrest (Rear Console)
