Subsystems

Motor Type(s)

Rear motor: AC permanent magnet synchronous motor, liquid-cooled, with variable frequency drive.

Front motor (AWD vehicles): AC induction motor, liquid-cooled, with variable frequency drive.

Motor Specifications

Cars manufactured in the U.S.:

Motor Type Max Power Max Torque Voltage
3D1 202 kW @ 5000 rpm 404 Nm 320 V
3D3 137 kW @ 6380 rpm 219 Nm 320 V
3D5 180 kW @ 6000 rpm 326 Nm 320 V

Cars manufactured in CHINA:

Motor Type Max Power Max Torque Voltage
3D1 202 kW @ 5000 rpm 404 Nm 320 V
3D3 137 kW @ 6380 rpm 219 Nm 320 V
3D5 180 kW @ 6000 rpm 326 Nm 320 V
3D6 220 kW @ 5000 rpm 440 Nm 320 V
3D7 194 kW @ 5400 rpm 340 Nm 320 V
Informational PurposesAn informational icon, calling your attention
Note
Motor type in your Model Y depends on date of manufacture. See Motor Labeling.

Drive Type

Model Drive Type
Dual Motor All-Wheel Drive AWD

Performance and Energy

For information related to performance and energy, go to http://www.tesla.cn.

Maximum Gradeability

The maximum gradeability is >30%.

Motor Labeling

Motor labeling includes:

  • EID: 1234567-00- a unique motor part number.
  • ETD: XXX - three-characters designating the motor type (from 3D1 through 3D7).
  • ESN: XXXXXXXXXXXXXX - a unique 14-character motor serial number.
  • VIN: a unique 17 character vehicle identification number.

Rear motor label location:

Zoombox with rear motor label location pointing to location visible through rear wheel

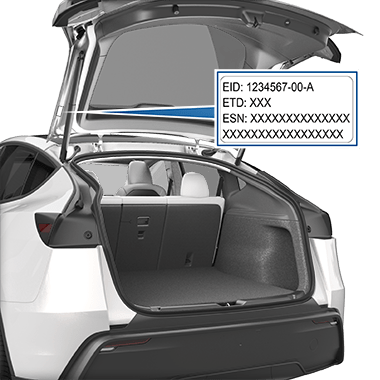

Rear motor label located on rear trunk:

Model Y with rear trunk open, zoombox to show label on liftgate.

Rear trunk open with an arrow pointing to label on liftgate

Front motor (if equipped) label location:

Zoombox with front motor label location pointing to location visible by front wheel

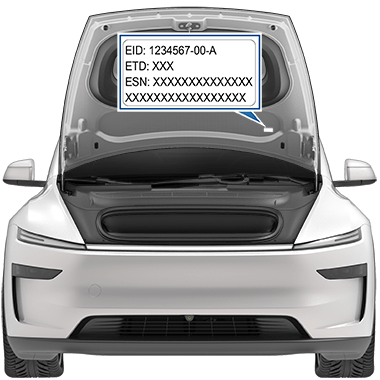

Front motor (if equipped) label located under front hood:

Transmission

Type Single speed fixed gear
Gearbox Ratio 9:1

Steering

Steering Specifications
Type Rack and pinion with electronic power steering, speed sensitive
Number of turns lock to lock 2.00
Turning Circle (curb to curb) 12.13 meters

Brakes

Type 4-wheel anti-lock braking system (ABS) with Electronic Brake Force Distribution, Integrated Advanced Stability Control and Electronic Accelerator pedal actuated regenerative braking system
Calipers

Front: Four piston fixed
Rear: Integrated Electronic Parking Brake Sliding

Rotor Diameter (ventilated)

Front (non-Performance): 14.0"/355 mm
Front (Performance): 14.0"/355 mm
Rear (non-Performance): 13.2"/335 mm
Rear (Performance): 13.2”/335 mm

Front Rotor thickness

New (non-performance): 0.98"/25 mm
New (performance): 1.06" / 27 mm
Service limit (non-performance): 0.91”/23 mm
Service limit (performance): 0.98" / 25 mm

Rear Rotor thickness

New (non-performance): 0.79"/20 mm
New (performance): 0.87" / 22 mm
Service limit (non-performance): 0.71”/18 mm
Service limit (performance): 0.79" / 20 mm

Lateral runout

0.050 mm

Chordal runout

0.040 mm

Disk thickness variation (DTV)

0.010 mm

Front Brake Pad Thickness (excluding back plate)

New: 0.393"/10 mm
Service limit: 0.085"/2.15 mm

Rear Brake Pad Thickness (excluding back plate)

New: 0.354"/9 mm
Service limit: 0.078"/2 mm

Performance Front Brake Pad Thickness (excluding back plate) New: 0.393"/10 mm Service limit: 0.085"/2.15 mm
Performance Rear Brake Pad Thickness (excluding back plate) New: 0.354"/ 9 mm Service limit: 0.071"/1.8 mm
Parking brake Electrically actuated parking brake integrated into rear caliper

Suspension

Suspension Specifications
Front Independent, double wishbone, coil spring/telescopic damper, sway bar
Rear Independent, multi-link, coil spring/telescopic damper

Battery - Low Voltage

Lead Acid Battery - Low Voltage Specifications
Rating 45 amp hour
Voltage and Polarity 12V
Lithium Ion Battery - Low Voltage Specifications
Rating 6.9 amp hour
Voltage 15.5V

Battery - High Voltage

Type Liquid-cooled lithium ion (Li-ion)
Nominal Voltage 345 V DC
Temperature Range Do not expose Model Y to ambient temperatures above 60° C or below -30° C for more than 24 hours at a time.
