Powering Devices with the Charge Port

The GB/T to Type A/I - Outlet Adapter lets you use your vehicle's battery as a power source.

For more information about using the outlet adapter, see the GB/T to Type A/I - Outlet Adapter Owner's Manual at https://www.tesla.com/support/charging/product-guides.

Specifications

You can use the GB/T to Type A/I - Outlet Adapter to power devices with Type A or I plugs from your vehicle's GB charge port.

Informational PurposesAn informational icon, calling your attention
Note
Leaving a device plugged in depletes the high voltage Battery. Even when nothing is plugged in, the adapter draws small amount of power from the Battery whenever it's enabled. When the charge level of the high voltage Battery is very low, power shuts off and a message is displayed on the touchscreen and in the mobile app. Leaving a device plugged in does not deplete the low voltage battery.
Current 10A
Voltage 220V
Enclosure Rating IP44
Operating Temperature -22°F to +122°F (-30°C to +50°C)
Storage Temperature -22°F to +122°F (-30°C to +50°C)
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Do not operate or store the GB/T to Type A/I - Outlet Adapter in temperatures outside the ranges listed above.

Powering Devices

Make sure that the accessory that you're powering is rated for the correct amount of power.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Do not connect a power source (such as a solar panel or external battery) to the GB/T to Type A/I - Outlet Adapter.

Plugging In

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Always inspect the GB/T to Type A/I - Outlet Adapter for damage prior to each use.
  1. Open the charge port door on your Tesla vehicle by lightly pressing on it while the vehicle is unlocked and in Park. You can also open the charge port door on the vehicle touchscreen or mobile app, where the Powershare time remaining estimate is displayed and adjustments to the discharge limit can be made.
    Informational PurposesAn informational icon, calling your attention
    Note
    Powershare will not start if the high-voltage Battery has less than 10% remaining energy.

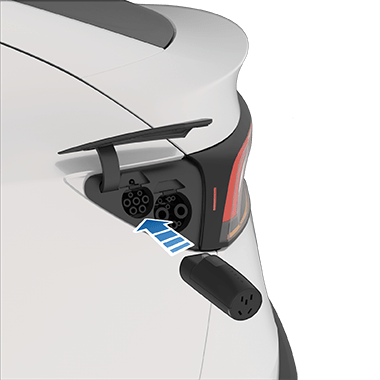

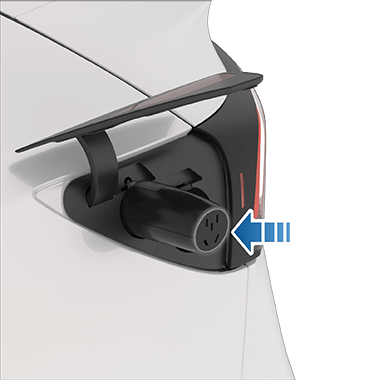

  2. Plug the outlet adapter into your vehicle's GB chargeport and wait for the vehicle to engage the latch that holds the adapter in place.
  3. Plug your device with a Type A or I plug into the outlet adapter.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Ensure that your device does not exceed the maximum draw on the outlet adapter.
Informational PurposesAn informational icon, calling your attention
Note
If using the GB/T to Type A/I - Outlet Adapter with the Gen 3 Mobile Connector to charge another Tesla vehicle, the vehicle receiving power may display the alert UMC_a040 on the touchscreen. This alert does not indicate an issue with the mobile connector or either vehicle, and you can continue charging your vehicle. For more information, see UMC_a040.

When the outlet adapter is actively providing power to a device, the status light blinks green.

Check the vehicle's touchscreen or mobile app to confirm that the Battery is powering the device.

When the charge level of the high voltage Battery drops below the discharge limit, power shuts off and a message is displayed on the vehicle touchscreen and in the mobile app.

Unplugging

To stop providing power from the vehicle:

  1. Stop the powering session using the vehicle's touchscreen or the mobile app.
  2. Unplug the device from the outlet adapter.
  3. With the vehicle unlocked, press and hold the button on the outlet adapter handle, wait for the charge port indicator light to turn white, and then pull the adapter out of the charge port.
  4. The charge port door automatically closes after you remove the outlet adapter.
  5. Store the outlet adapter in the vehicle for future use.
