Dimensions, Weights, and Cargo Capacity
Dimensions - Exterior
Callout | Description | Measurement (in) | Measurement (mm) |
---|---|---|---|
A | Overall Length | 223.74 | 5,682.9 |
B - Overall Width | Including mirrors | 95.01 | 2,413.3 |
Folded mirrors | 86.64 | 2,200.7 | |
Excluding mirrors | 79.99 | 2,031.8 | |
C - Overall Height | Entry/Exit air setting | 68.54 | 1740.8 |
Low air setting | 69.13 | 1755.8 | |
Medium air setting | 70.70 | 1795.8 | |
High air setting | 73.06 | 1855.8 | |
Very High air setting | 74.64 | 1895.8 | |
Extract (highest) air setting | 76.61 | 1945.8 | |
D | Wheelbase | 143.11 | 3,635.0 |
E - Overhang | Front | 34.58 | 878.3 |
F - Overhang | Rear | 46.05 | 1,169.6 |
G - Ground Clearance | Entry/Exit air setting | 7.93 | 201.3 |
Low air setting | 8.52 | 216.3 | |
Medium air setting | 10.09 | 256.3 | |
High air setting | 12.45 | 316.3 | |
Very High air setting | 14.03 | 356.3 | |
Extract (highest) air setting | 16.00 | 406.3 | |
H - Track | Front and Rear | 69.76 | 1,772.0 |

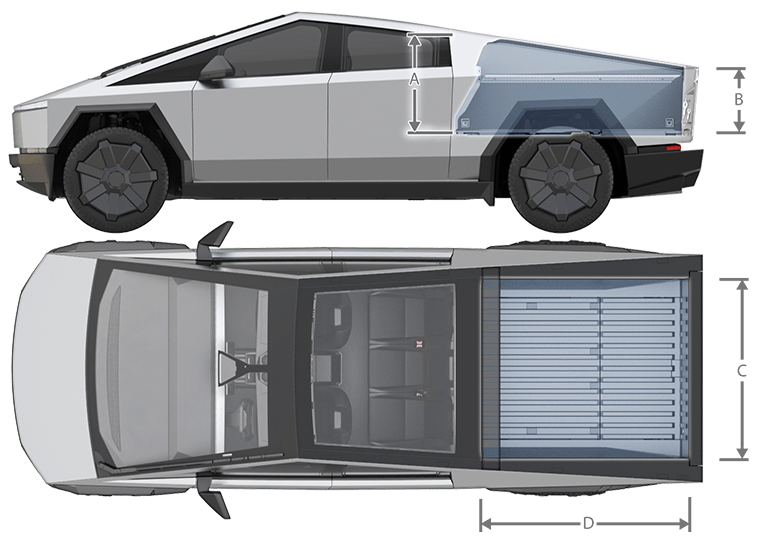

Dimensions - Cargo Bed
Callout | Description | Measurement (in) | Measurement (mm) |
---|---|---|---|
A | Maximum Height - Front | 28.66 | 727.9 |
B | Maximum Height - Rear | 19.89 | 505.2 |
C | Width at Floor | 51.00 | 1,295.4 |
D | Length at Floor | 72.92 | 1,852.2 |
Dimensions - Interior Cabin
Location | Measurement (in) | Measurement (mm) |
---|---|---|
Head Room - Front |
41.69 |
1,058.8 |
Leg Room - Front |
41.09 |
1,043.6 |
Shoulder Room - Front |
63.31 |
1,608.0 |
Hip Room - Front |
57.22 |
1,453.3 |
Weights - Vehicle
Dual Motor |
Dual Motor |
Tri Motor |
Tri Motor |
|
---|---|---|---|---|
Curb Mass Total* |
6,634 lb |
6,669 lb |
6,863 lb |
6,898 lb |
Curb Mass - Front Axle |
3,287 lb |
3,305 lb |
3,336 lb |
3,353 lb |
Curb Mass - Rear Axle |
3,347 lb |
3,364 lb |
3,527 lb |
3,545 lb |
Payload |
2,200 lb |
2,500 lb |
2,000 lb |
2,270 lb |
GVWR Total** |
8,834 lb |
9,169 lb |
8,863 lb |
9,169 lb |
GVWR - Front Axle |
|
|
|
4,160 lb |
GVWR - Rear Axle |
4,738 lb |
5,062 lb |
4,844 lb |
5,009 lb |
GAWR - Front Axle*** |
4,255 lb |
4,255 lb |
4,255 lb |
4,255 lb |
GAWR - Rear Axle |
5,009 lb |
5,247 lb |
5,009 lb |
5,247 lb |
Maximum Towing Capacity |
11,000 lb |
11,000 lb |
11,000 lb |
11,000 lb |
For more details on towing, see Towing a Trailer. | ||||
*Curb Mass = Weight of the vehicle with correct fluid levels, no occupants and no cargo. |
Weights - Nominal GVWR Reference
The following loading scenario assumes that cargo is uniformly distributed in their respective areas (cargo bed and front trunk), and the cabin is fully occupied by five people weighing 150 lb (68 kg) each. In this scenario, loads heavier than the combined weights as specified for passengers or cargo would exceed the vehicle's GVWR.
Location |
Dual Motor |
Dual Motor |
Tri Motor |
Tri Motor |
---|---|---|---|---|
|
1,010 lb |
1,310 lb |
919 lb |
1080 lb |
Front Trunk |
441 lb |
441 lb |
331 lb |
441 lb |
Cargo - Weight Limits
The front trunk and under bed compartments are designed to hold the following weights:
Front Trunk | Maximum 441 lb (200 kg) |
Under Bed Compartment | Maximum 220 lb (100 kg) |
Cargo - Volumes
Location | Cubic Feet | Liters |
---|---|---|
Front trunk | 7.1 | 200 |
Cargo Bed (enclosed) - Above load floor | 56.2 | 1,591 |
Cargo Bed - Lower storage compartment | 3.4 | 97 |
Cabin - Behind front seats with rear seat cushions folded up | 54.2 | 1,533 |
Total volume with five passengers | 66.7 | 1,888 |
Total volume with two passengers | 120.9 | 3,421 |
